Categories | Lab Homogenizer |
---|---|
Brand Name: | SAMRO |
Model Number: | SRH60-70 |
Certification: | ISO9001,CCC,CE |
Place of Origin: | Shanghai,China |
MOQ: | 1 |
Price: | USD 3000 set |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 80 sets per month |
Delivery Time: | 5-15 days |
Packaging Details: | Export standard wooden packaging |
Cover steel: | Stainless steel |
Flow: | 60ltr/hr |
Max pressure: | 700bar |
Voltage: | 3 phase 380V |
Min. capacity: | 200ML |
Company Info. |
ShangHai Samro Homogenizer CO.,LTD |
Verified Supplier |
View Contact Details |
Product List |

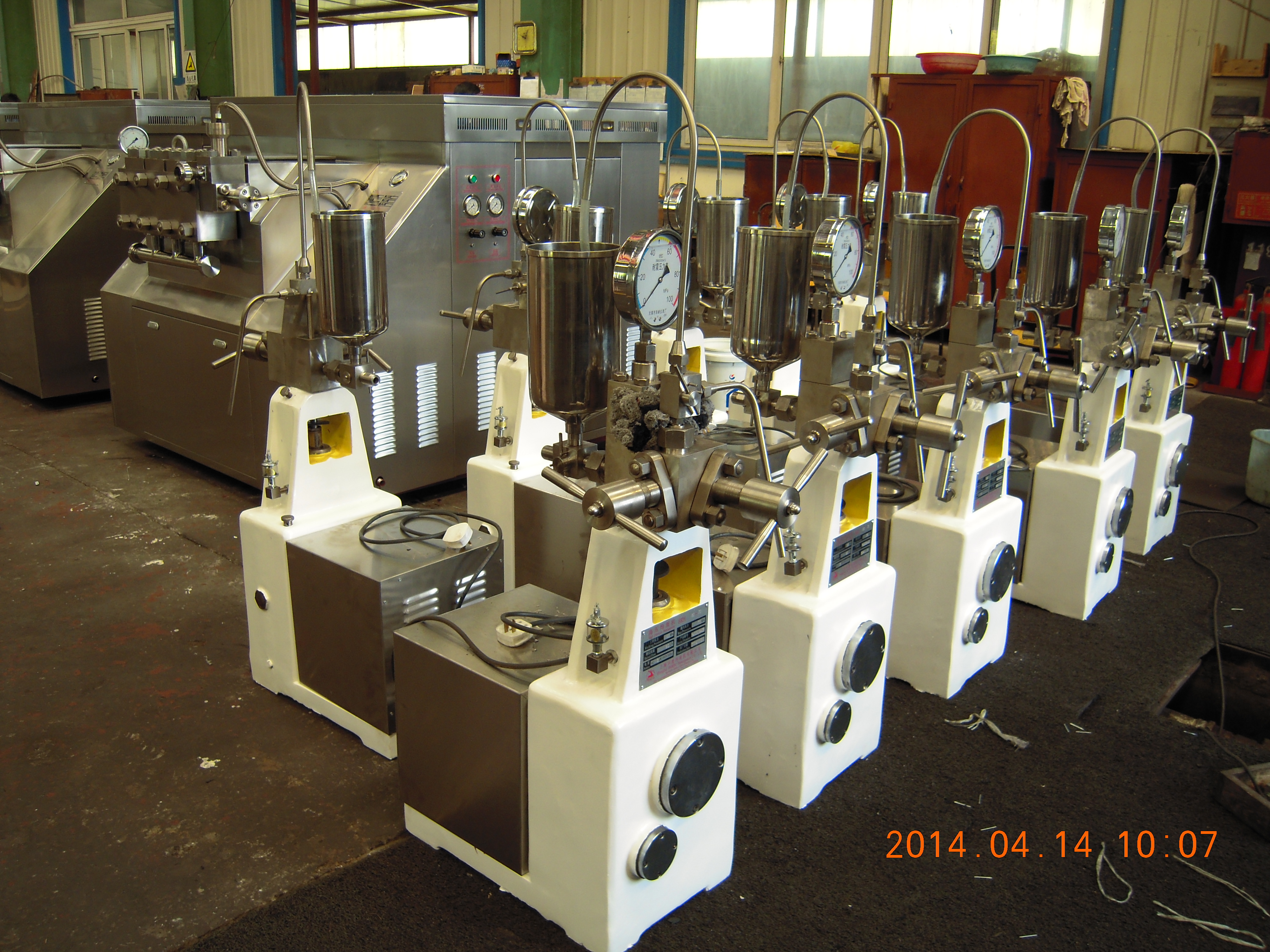

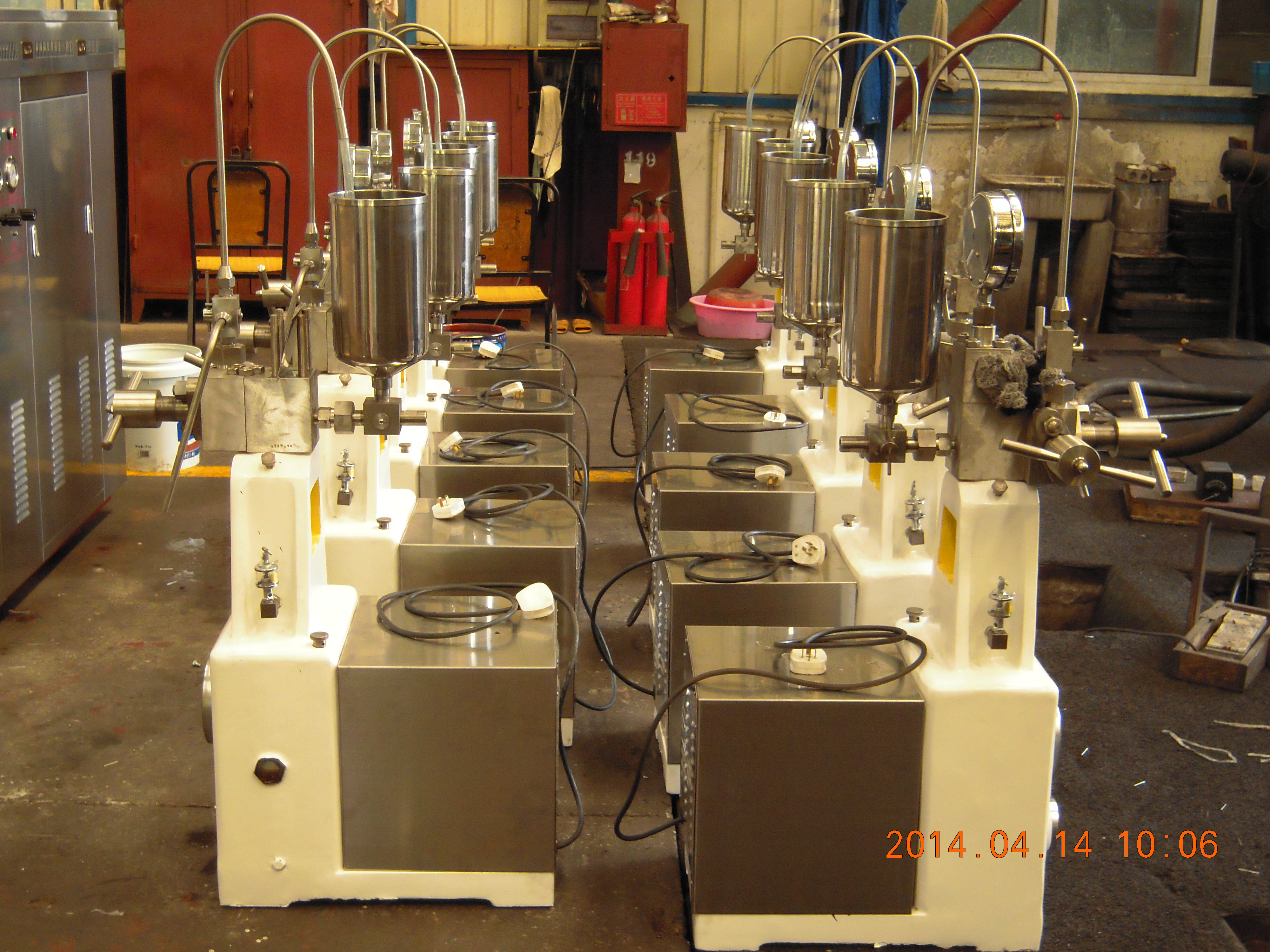

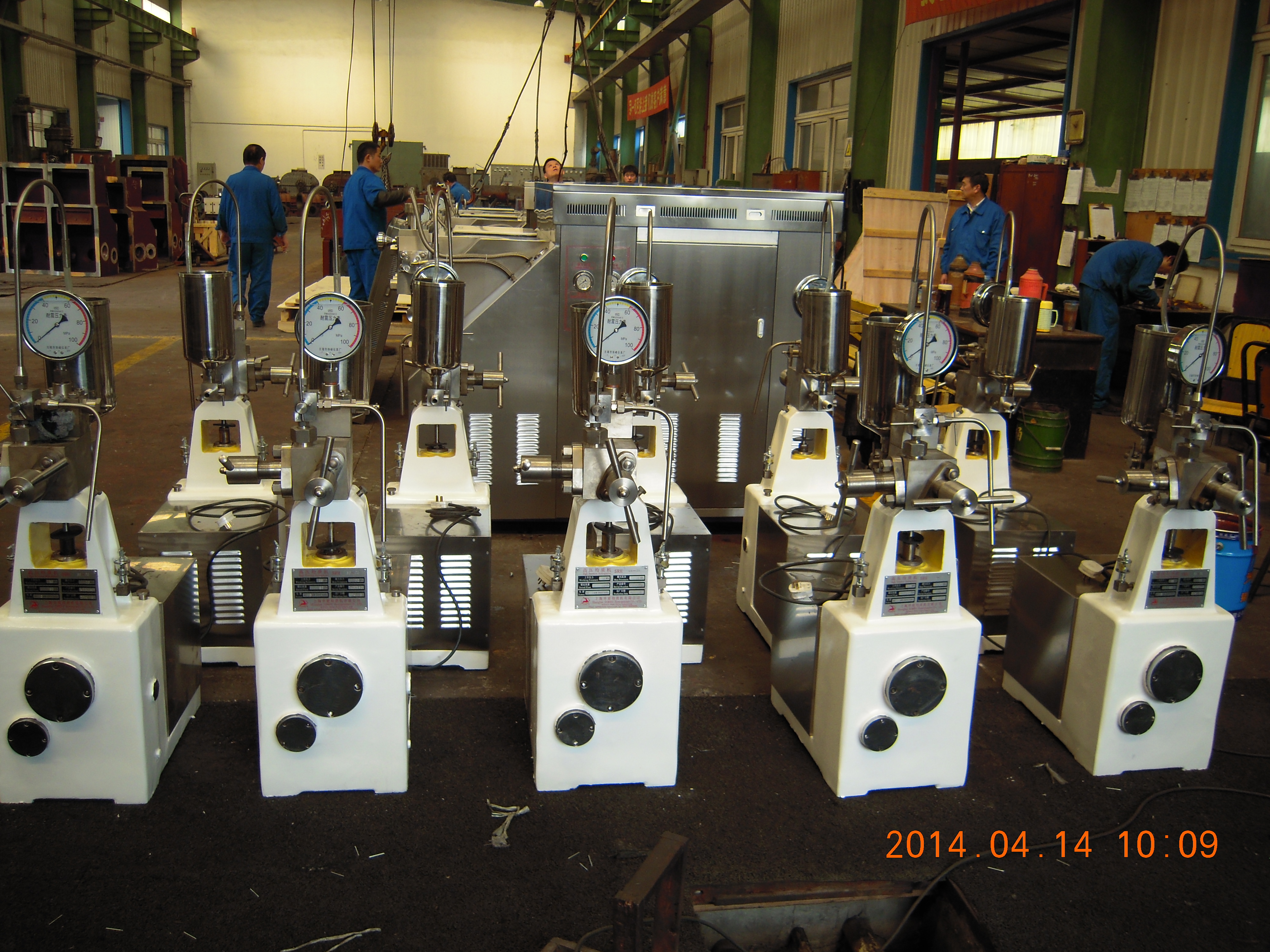

Easily Operated Small Laboratory Homogenizer For 200ml Dose Experiment
Specifications
Model | SRH60-70 | |
Number of Plunger | 1 | |
Rated flow | 60L/H | |
Maximum pressure | 70Mpa | |
Rated pressure | 0-56Mpa | |
Minimum capacity for experiment | 200ML | |
Power | 3KW | |
Weight | 270KG | |
Size L×W×H | 0.7*0.4*1.3M |
Features:
Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger:the 4th generation stainless alloy(PH-type).
Check valve:the 4th generation stainless alloy (GrMoFr),abrade-resisting and impact-resisting.
Pump block: stainless steel.
Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C.
Homogenizing valve: the 3rd special stainless alloy;
All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning
![]() |
