DC current sensor of split core current transformer100/5 150/5 200/5 250/5 300/5 for current monitoring

This product has been speciallydesigned to facilitate their installation in new or already existing net works.They may be installed without opening any cable or busbar circuit. An internalprecision resistor across the secondary winding of the CT provides a low safevoltage output. It can save time and the installation costs.

1.We have abtained VDE,UL,CE,ROHS,ISO9000 ,ETL Approal and SGS Audit Supplier in China,We guarantee quality is the first:

2.The following is our detailed information of our DC current sensor of split core current transformer100/5 150/5 200/5 250/5 300/5 for current monitoring

Features:Double-screw fastening,safe, easy to install, portableWide inner window, allowing clamping of big cables or bus-barsWide range of sizes to accommodate all the existing installationsApplications:Current measurement, monitoring and protection for electrical wiringand equipment.Current and power measurement for electric motors, lighting, aircompressor, heating and ventilation system, air-condition equipmentand automation – control system.Current, power and energy monitoring device.Relay protection device.

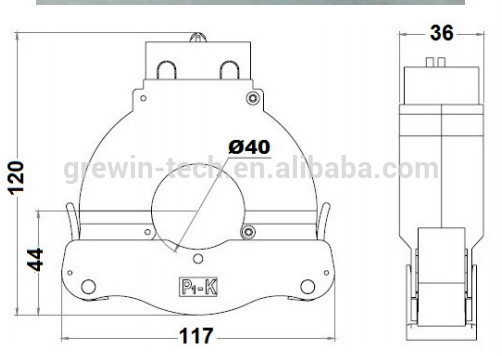

3.The following is the designing model of DC current sensor of split core current transformer100/5 150/5 200/5 250/5 300/5 for current monitoring

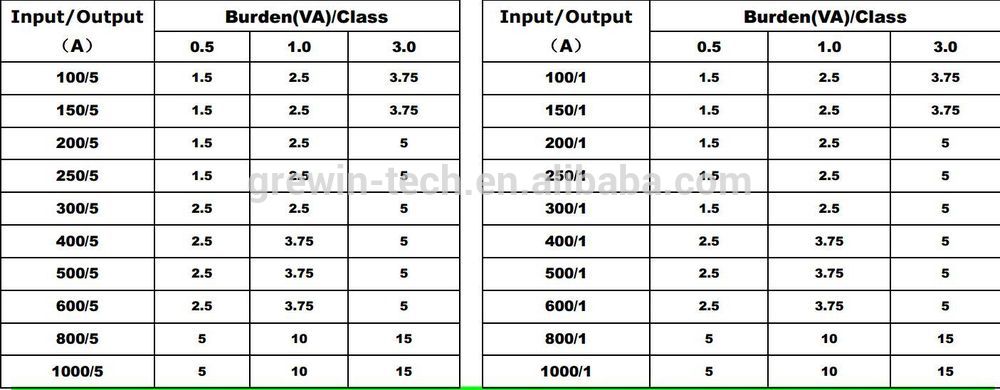

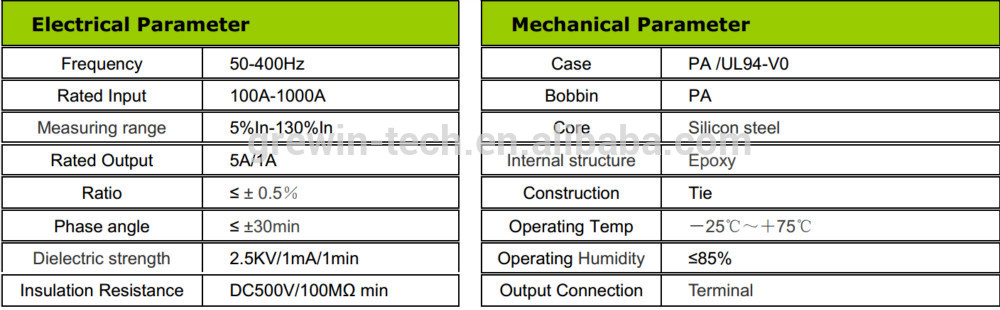

4.The following is the parameter of different model DC current sensor of split core current transformer100/5 150/5 200/5 250/5 300/5 for current monitoring

5.WHY CHOOSE US?

6.Contact Name Card:

Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". We have both design and produce different kinds of current transformers, including clamp on current transformers、split core current transformers、closed loop sensor hall、open loop sensor hall、miniature current transformers、three phase current transformers、single phase current transformers and so on.

Depending on continuous and innovative R&D, and efficient management, Grewin has attracted lots of talented people to work together, who provide effective production, accurate inspection testing and excellent sales service for customers.

Grewin's  manufacturing bases is located in Tianjin in China's north, which is Grewin's for electronic component products and using automated equipment like telephone, computer, air-conditioner and meter equipments etc., the division is operated by engineers who design and build data recorders with reasonable price.

Our products are all exported to overseas market like America, German, Russia, Japan etc. Also we have passed ISO9001, CE, SGS certification.

We sincerely invite you to join us to create a bright future.
