| Categories | Gabion Box |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Konson |
| Certification: | ISO9001,SGS,CE,ASTM, EN, BS standard. |
| Model Number: | KS-Gabion |
| MOQ: | 1000 sqm |
| Price: | Discuss in mail |
| Packaging Details: | weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design. |
| Delivery Time: | 15 days for 1x40'FCL |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 12000 sqm per day |
| Company Info. |
| Konson Industrial Co., Ltd. |
| View Contact Details |
| Product List |
Heavy Duty Galvanized Wire Gabion Box Fencing Retaining Wall For Coastal Protection
1. Konson Gabion Box

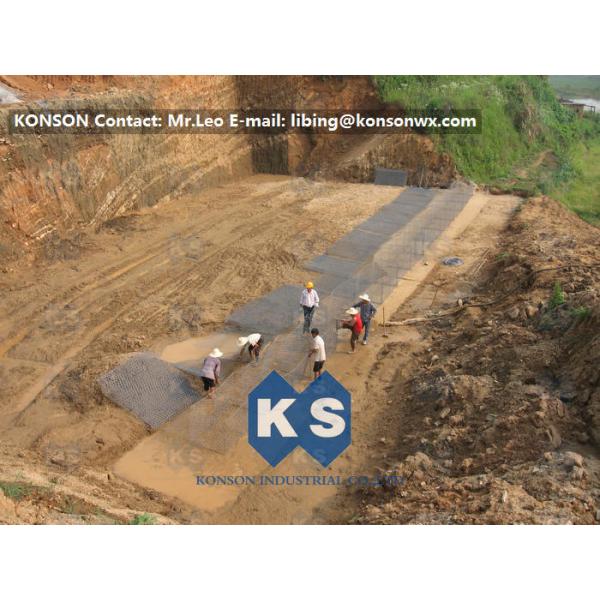

Gabion box in 2x1x1 is one of the most popular models, Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects.
Filled with stones at the river bank or seaside, it can be used to stop flood, and prevent the rock on the mountain from falling. Steel wire used is hot-dip galvanized or galfan(zinc 95%, aluminum 5%). If it is required, 0.5 mm PVC is then coated on the galvanized/galfan wire to provide protection when used in aggressive environment.
Standard sizes in mesh 80mm x 100mm nominal, wire diameter 2.7mm, Heavily zinc galvanised wire or Galfan coated with a 95%Zinc + 5% Aluminium Alloy
Length (m) | width (m) | height (m) | diaphragm | volume | tolerance |
2 | 1 | 0.3 | 1 | 0.6 | Length+/-3% |
3 | 1 | 0.3 | 2 | 0.9 | |
4 | 1 | 0.3 | 3 | 1.2 | |
2 | 1 | 0.5 | 1 | 1 | |
3 | 1 | 0.5 | 2 | 1.5 | |
4 | 1 | 0.5 | 3 | 2 | |
1 | 1 | 0.5 | 0 | 1 | |
1.5 | 1 | 1 | 0 | 1.5 | |
2 | 1 | 1 | 1 | 2 | |
3 | 1 | 1 | 2 | 3 | |
4 | 1 | 1 | 3 | 4 |
The production's material and size can be producted as the
customoer's requirement.
1.Economy.It only needs to load stone and then to be sealed.
2.Construction is simple, without special skills.
3.A strong withstand natural damage and corrosion resistance.
4.Withstand large-scale deformation, and does not collapse.
5.Cage rock crevice between the mud will be melted together by the surrounding natural
environment.
6.Has good permeability to prevent the damage by hydrostatic.
7.Save transportation costs.It can be folded up for its transport.
|
