High Speed Paper Cup Lid Making Machine For Coffee Paper Cup Lid

High Speed Paper Cup Lid Making Machine For Coffee Paper Cup Lid

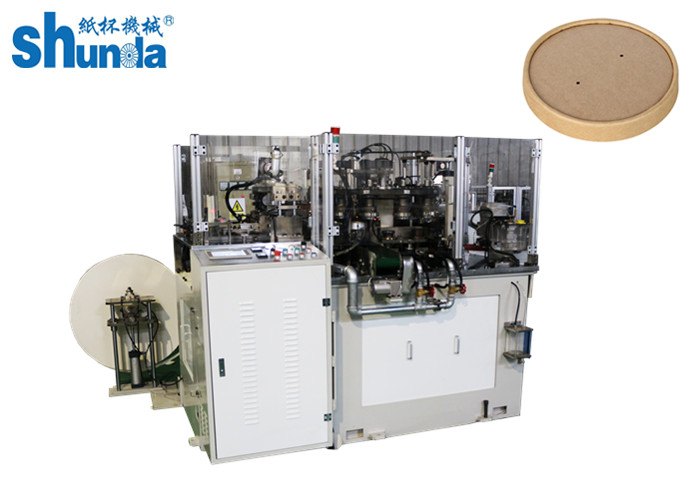

Automatic Paper Lid Forming Machine is used production a variety or paper material lids.It capable of producing the lids for the paper cup,paper cans and other round paper packaging containers.

It introduces the advanced completely. The equipment is stable,high production efficiency,may realize a person of machine operation,To a certain extent,it will liberate labor force.This equipment can save raw material and the energy consumption is low.What’s more,it simple and quick to replace mold.

Technical Parameters

Model	PLM-60
Speed	50-60 pcs/min
Lid size	diameter: 60-125 mm height: 12-25 mm
Raw material	135-450 gsm
Configuration	ultrasonic
Output	5.5 kw, 220/380v, 50/60 hz
Air compressor	1.2m3/min, 0.4 MPA
Net weight	2000 kgs
Dimension of machine	1700*1300*1500 mm

Product Description

Main Features

Open cylindrical cam and gear drive system
- make running more stable
- high precision
- long life for machinery.


Oil Lubrication System
- automatic spray engine oil to gears, chains
- less human maintaince
- oil can be recyced used
- clean and change oil half a year

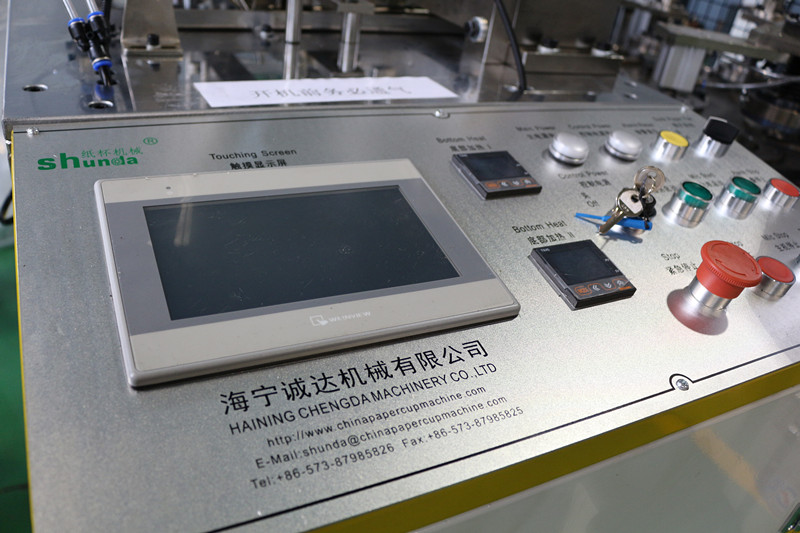

PLC control Panel
- simple and efficient control panel, mady by MITSUBISHI.
- problems show in PLC display screen, make work more intelligent.

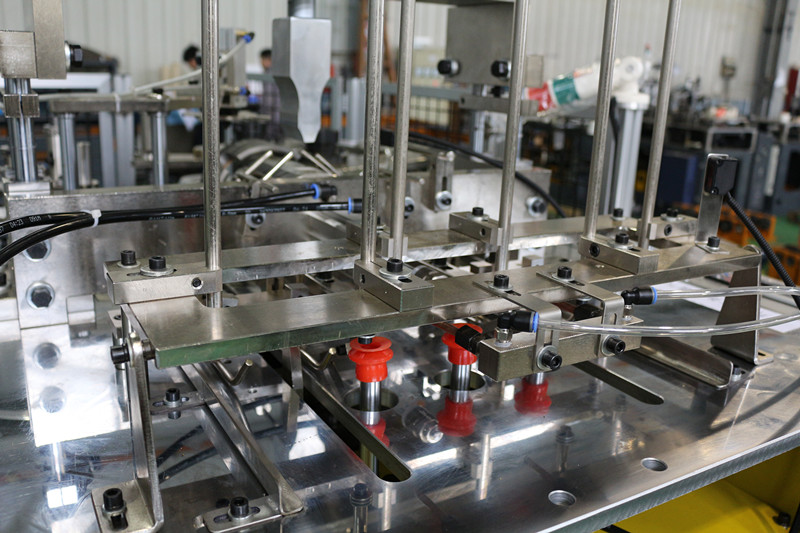

Photoelectric
- panasonic Photoelectricity sensor to track every step.
- auto alarm when paper fan go short
- auto stop when multi paper fans devlier
- auto paper fan track and deliver
...

Lid Body Sealing
- ultrasonic sealing for lid body, ensure machine can running high speed for single and double pe coated paper.

Detailed Images

FAQ

About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1999,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,

--Middle speed paper bowl machine SMD-80B 70-80cups/min

--Middle speed double wall paper cup machine SMD-80A 70-80cups/min

--High speed paper cup machine SMD-90 100-130cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.
