Categories | Indoor Full Color LED Display |
---|---|
Brand Name: | Dreamway |
Model Number: | P5 |
Certification: | CE,ROHS |
Place of Origin: | China |
MOQ: | negotiable |
Price: | negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000sq.m/Month |
Delivery Time: | 20 days after receiving the deposit |
Packaging Details: | Plywood case |
320mm x 160 mm LED Module P5 Full Color LED Display with Double Side
Quick Detail:
1. Two sides LED display;
2. 180 mm thickness;
3. Over 1,500 CD/sq.m;
4. Steel dustproof cabinet;
5. Xixun controller;
6. Plywood box packed.
Detail Description:

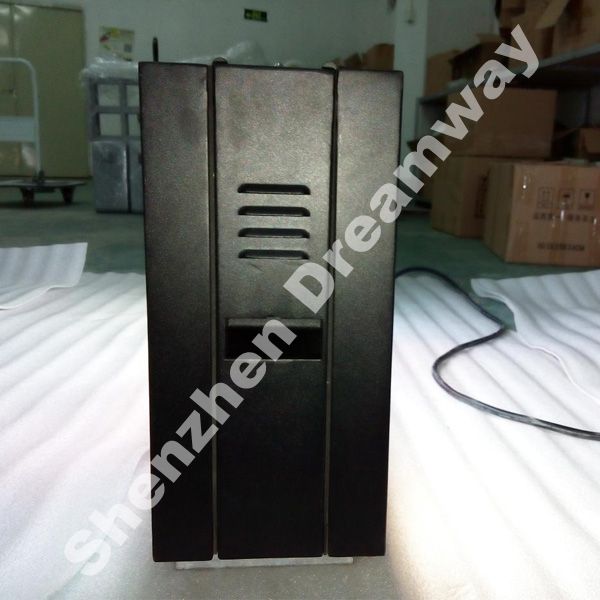

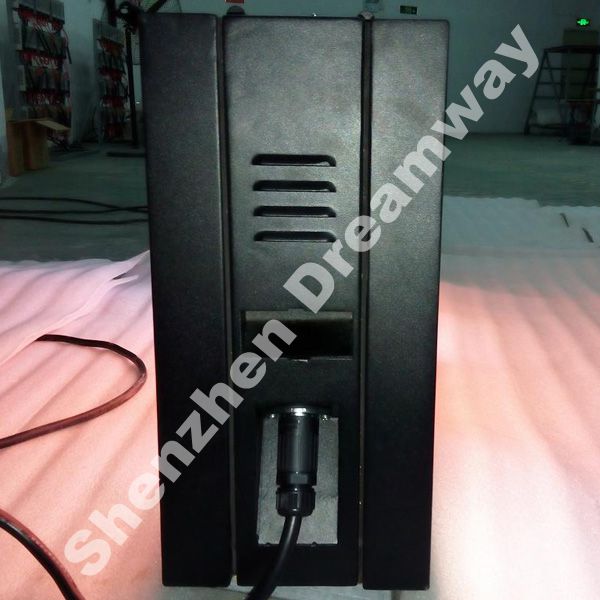

This indoor double side LED display is 180 mm thick;
Controlled by WIFI, with Xixun C10 controller;
The brightness is more than 1,500 nits, suitable to be used for indoor advertising.
Application:
This indoor double side LED display is to be installed on gambling machine.
Specifications:
Pixel Pitch | 5 mm |
LED Composition | 1R1G1B |
LED Type | SMD3528 |
Resolution | 40,000 pixels/sq.m |
Module Pixel | W 64 × H 32 |
Module Size | W 320 × H 160 mm |
Screen Size | W 960 × H 320 mm |
Whole Cabinet Size | W 1000 × H 360 × T 180 mm |
Cabinet Color | Black |
Drive Method | 1/16 scan constant current |
Brightness | More than 1,500 nits/sq.m |
Weight | about 21 kg/pc |
Out of Control Dot Rate | <0.0001 |
Earth Leakage Current | <2mA |
Control Method | Asynchronization |
Operation Software | LEDEditor_V9 |
Power Supply | 110V / 220V interchangeable |
Brand | Meanwell, CE standard |
Package | Plywood box |
Warranty | 2 years |
