HA80 Wood Grain Aluminum Roller Shutter Door 80mm Width

Categories	Aluminum Roller Shutter Door
Certification:	CCC, ISO9001, CE
MOQ:	100
Price:	54.5
Slat Width:	80mm
Slat Thickness:	1.0mm, 1.2mm
Slat Color:	wood grain, wood color
Guide Rail Dimensions:	8036mm or 9036mm
Motor Load Capacity:	400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG
Motor Voltage/Frequency:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tubular Motor Torque:	60N, 80N, 120N, 140N, 230N, 300N
Tubular Motor Voltage:	230V/50Hz, 120V/60Hz
Shaft Diameter:	3 inches, 5 inches, 6 inches, 8 inches, 10 inches
Guide Rail Material:	heavy duty extruded aluminum
Bottom Rail Material:	extruded aluminum
Shutter Box Material:	galvanized steel or aluminum
End Plate Material:	heavy duty steel
End Clip Material:	plastic
Production Capacity:	3000 Square Meters/ Month

Contact Now

Add to Cart

Company Info.

Starking Shutter Manufacturer Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

HA80 Wood Grain Aluminum Roller Shutter Door 80mm Width

Aluminum Roller Shutter Door------------HA80

It's ideal solution for following applications:
commercial shop
factory
warehouse
residential garage
club bars
etc.

Funtion
safety and security
theftproof
heat insulation
weather resistant
rustproof
sound Insulation

Motorized operation polycarbonate rolling shutter door
European-Style Wood Colour Aluminum Garage Doors

European-Style Wood Colour Aluminum Garage Doors

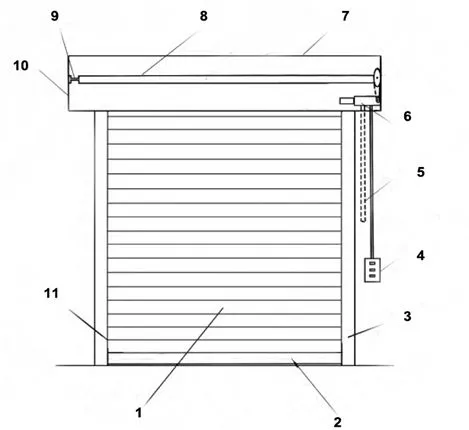

Specifications
1, Item name: double skinned aluminum Slat (HA80)
Width: 80mm
Thickness: 1.0mm, 1.2mm
Color: wood grain, wood color
2, Item name: Aluminum bottom rail
Made of extruded aluminum
3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 80*36mm or 90*36mm ,Width*Depth*thickness, With brush strip to make the rolling shutter run more quietly
4, Switch button
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate,400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11.End clip
Made of plastic, fixed on both sides of aluminum slats, to protect the curtain from lateral moving

Manual operation aluminum roller shutter is available if needed.

Just give us a call or email us to get more details.
