Fiber Optical Light Source FTTH OPM Handheld Stable Laser FC SC ST FTTH Power Meter

Categories Fiber Optic Tools And Equipment
Brand Name: Fongko
Model Number: FKEQU-084
Certification: Rohs, SGS, ISO
Place of Origin: Shenzhen,Guangdong,China
MOQ: 1
Price: Negotiatable
Payment Terms: T/T, Western Union, L/C
Product Name: Fiber Optic Power Meter
Certificate: RoHS
Auto off time: 10 min
Wavelength range: 850/1300/1310/1490/1550nm
Optical Connector: FC/SC/ST
Detector type: InGaAs
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

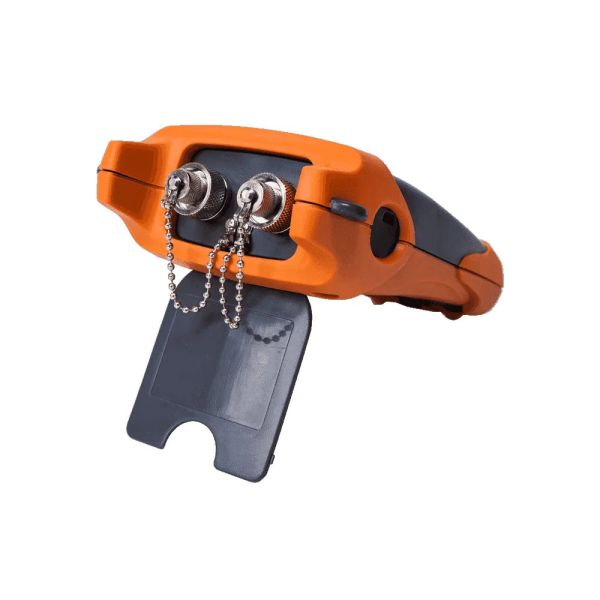

Fiber Optical Light Source FTTH OPM Handheld Stable Laser FC SC ST FTTH Power Meter

FC SC ST 850/1300/1310/1490/1550nm Handheld Stable Laser Source Fiber Optical Light Source
OPM
Wavelength
850nm±20nm/1300±20nm
1310/1490/1550±20nm
Fiber Type
62.5/125μm
9/125μm
Optical connector
FC/SC/ST
Laser Type
FP-LD
Power
≤-5dBm
Stability
±0.02dB/8h
Mode
CW/270Hz/1000Hz/2000Hz
Power Regulation
0~6dB,1dB Step
Others
Power supply
Three AA Batteries/1500mA Rechargeable Lithium Battery (optional)
Battery continuous working time
≥72h(LS function)
Auto shutdown time
10min
Operating temperature
-10°℃-+50℃
Storage temperature
-40°℃-+70℃
relative temperature
0-95% No condensation
Size
186mmx100mmx50mm
Weight
140g/150g

Ordering Information
FKEQU-084-A-B
A
B
LS Wavelength:
S:1310/1550nm
M:850/1300nm
T:1310/1490/1550nm
SM:850/1300/1310/1550nm
Y:Customize
Battery:
D. dry battery;
L. Lithium battery
Selection instructions: the range of the power meter is required, and the others are optional
