87 keys Silicone Rugged Keyboard Carbon On Gold Key Switch Technology

Categories Silicone Industrial Keyboard
Brand Name: IKB-MKB
Model Number: K-TEK-M270-FN-ML
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin: Shenzhen, China
MOQ: 1pc
Price: To be quoted
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Packaging Details: Each keyboard to one box, several boxes to one carton.
Material: Silicone rubber
Keys: 87 keys
Interface: USB/PS2 available
Key travel: 1.50mm±0.10mm
G.W.: 1.20KGs
Name: Silicone Rugged Keyboard
Keyword: Rugged keyboard, military keyboard
Key switch: Carbon-on-gold key switch technology
Protection level: IP65 dynamic (front panel)
Backlight: Optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

87 keys Silicone Rugged Keyboard Carbon On Gold Key Switch Technology

Silicone Rugged Keyboard Carbon-On-Gold Key Switch Technology


DESCRIPTION FOR SILICONE IRUGGED KEYBOARD: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mounted, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

SILICONE IRUGGED KEYBOARD DIMENSIONS: 270.0mm x 113.0mm (Front panel)


SILICONE IRUGGED KEYBOARD MECHANICAL DATA
Keys87 keys
Switch Contact MaterialCarbon-on-gold key switch technology
Key Top StyleProtuberant rectangular keys with tactile feeling
Key Travel1.50mm±0.10mm
Actuation Force1.5N±0.2N (pressure point )
G.W.0.80KGs
SILICONE IRUGGED KEYBOARD ELECTRICAL DATA
Supply VoltageDC +5V±5%
Current Rating30mA
EMC StandardEN 55032:2015 EN 55035:2017
Lifespan> 5 years
InterfaceUSB, PS2 available
OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
SILICONE IRUGGED KEYBOARD ENVIRONMENTAL ADAPTABILITY
Operating Temperature-40℃ to +75℃
Storage Temperature-45℃ to +85℃
Operating RH3%~95%
Atmospheric Pressure60-106Kpa
Saline Mist96 hours, IEC 60512-6
Damp heat test at +40℃21 days, IEC 60512-6
Dry heat test at +85℃10 days, IEC 60512-6
SILICONE IRUGGED KEYBOARD RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection LevelIP65 dynamic (front panel)
Key Lifespan>5 million actuations
MTBF>20000H
MTTR<30min
APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

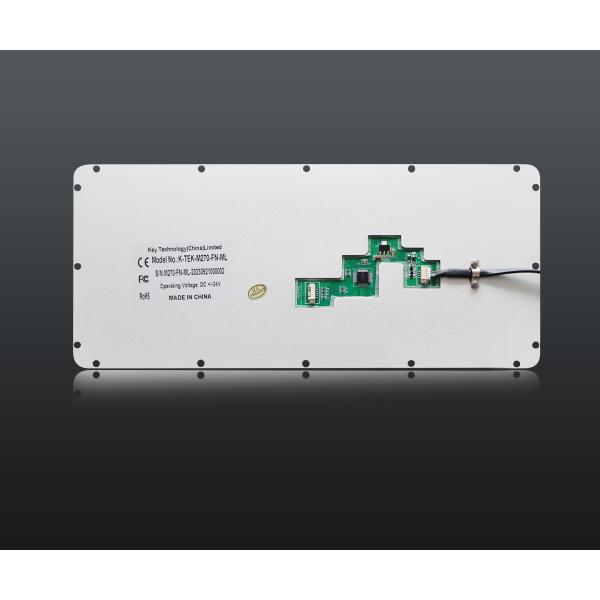

SILICONE IRUGGED KEYBOARD ACTUAL PHOTOS
