4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series

Categories Fluid Level Meter
Place of Origin: CHINA
Brand Name: KACISE
Model Number: GXRS series
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability: 1000 Piece/Pieces per Week negotiable
Price: $10.00 - $50.00/pieces
Model: GXRS series
Application: fuel tank
Sensor: Level sensor
Funciton: level measurement
Signal: Resistance ouput 0-190OHM
Theory: Resistance Sensor
Material: stainless steel
Length: 170~2000mm
Protection Grade: IP67
Feature: 4~20 diesel fuel tank level sensor
Port: Shanghai or other
Certification: CE
MOQ: 1PCS
Delivery Time: 5-8 work days
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4 - 20mA Stainless Steel Diesel Fuel Tank Level Sensor GXRS Series

Start a career with essence,

win through high quality.

4~20 diesel fuel tank level sensor

1. Products Introduction
The GXRS fuel series sensor is made of stainless steel. It applies the principle of the liquid flotage and magnetic induction to measure the liquid level. The product has good anti-corrosion performance, high measuring precision and preventing oil leakage when turned over. These made the sensor be widely used in light truck, bus, boat, and engineering mechanism fields. Graceful design and excellentquality attract the world famous vehicle OEM.
The GXRS series sensor is a cost effective fuel level sensor designed for smaller trucks. The sensor is designed according to the actual tank shape for exact measurements of the tank content. Measurements are done by series of reed switches positioned inside the level tube. A float. with built- in magnets then triggers the reed relays. generating a potential - free resistance with a ohm value that increases or decreases according to the respective fluid level. Resistance output is fully customizable. The float is the only moving part of the sensor. thereby minimize potential mechanical failures. All sensors are fully insulated to protect against voltage inside the tank.
2. Parameters
Material304 stainless steel
Fittingbulge fitting, thread fitting, SAE fitting
Length range100mm~2000mmm
Installationbayonet, standard 5 holes or standard 6 holes, can be customzied
GasketFPM gasket, NBR gasket
Rated Power125mW
Rated Current for alarm switch500mA
WirePVC material (PA corrugated pipe aacover is optional)
ConnectorBrand Delphi , Tyco, others is available according to customers’ requirement
Output signalResistance control signal 0-190Ω, 240-33Ω, or customize as required
Precision Range10-40mm
Operating Temperature-40~+85
Protection GradeIP67

3. Dimension


4. Application

1. mainly used in liquid level detection and oil absorbing function for oil tank


5. Package

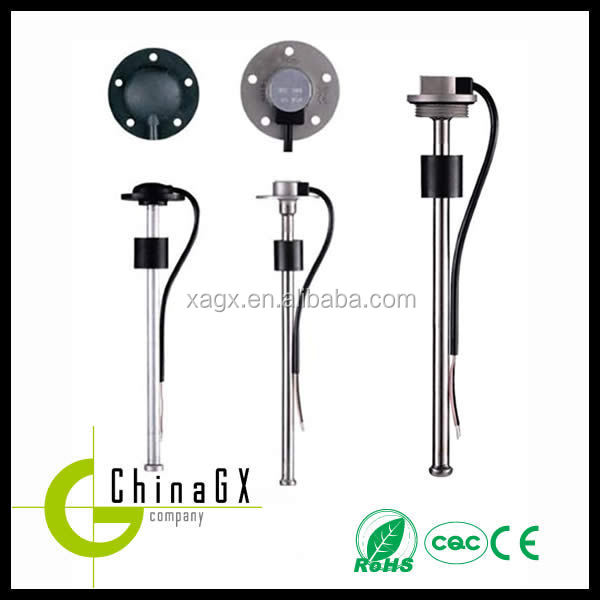

6. Product picture

******************************************************************************************************************************************



Our Services

Please send us emali for more information, we will reply you in 12 hours.
We will provide 12 months of warranty, and lifetime maintenance for products.
Fully tested before delivery.

We supply high quality fuel level sensor, and provide high level services.
We believe once cooperation can keep you as our friend. We look forward your inquiries.
