| Categories | Copper Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | 0.03-0.8mm |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | Different types with differet MOQ |
| Price: | Negotiation |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Breakdown voltage: | up to 3000V |
| Thermal Class: | 130-220 |
| Twist pitch: | 3-70mm |
| Insulation: | UEW/PEW/EIW/AIW |
| Size range: | 0.03-0.8MM |
| Color: | Natural/Red/Green/Black/others |
| Standard: | 2-4000 |
| Tiwst direction: | 0.15-10mm |
| Overlap option: | 33%/50%/66% |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

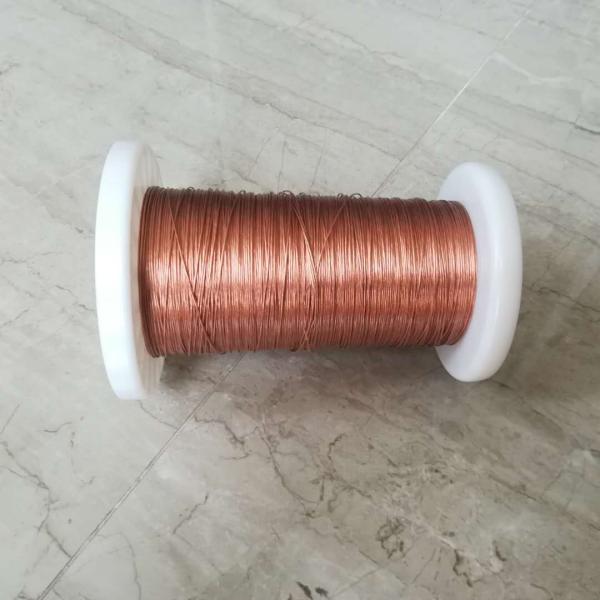

TWISTED HIGH FREQUENCY LITZ WIRE HIGH VOLTAGE ENAMELED WIRE FOR COMMUNICATION EQUIPEMENT
High frequency litz wire is used in transformers and chokes to reduce the power losses that occur due to the eddy current and reduce the skin effect. Operating frequency determines the litz wire parameters and defines the diameter of a single wire. The higher operating frequency of inductive components, the smaller diameter of a single wire.According to the respective application, litz wire can be constructed for optimized heating - or high frequency performance. By a suitable choice of conductor materials, number of single wires, constructions and dimensions a high number of cost efficient variants for a wide range of applications can be offered.
DESIGN
New design or recommendation according to customer requirements for sizes, turns,current, power and environmental parameters
APPLICATION
TIPS
Cusotmers to use automatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solutions.
Only class B and class F are vailable
Color can be customer-made, wire material will be polyester if not specified, can be customer designed
|
