Managed Gigabit Ethernet Switch 8 Port PoE
Managed PoE Switch Industrial 8 Port 10/100/1000T 802.3at + 2-Port 1000X SFP Fiber Ethernet Switch
Managed PoE Switch Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
8 port Gigabit Managed Switch Overview

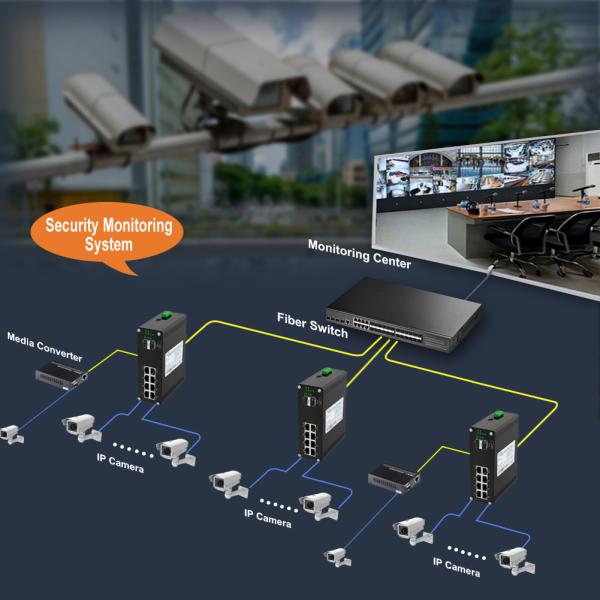

ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial Managed Switch Technical Indexes
Connector | 8 x RJ45 | |||
RS485 | 1 x RS485 (Optional) | |||
Optical Port | 2 x 1000Base-X SFP | |||
USB-C | 1 x USB-C (for Management) | |||
Data type | 1Ch RS485 Bi-Direction | |||
RS-485 signals | Data +, Data-, GND | |||
Standard | IEEE 802.3at Power over Ethernet Plus | |||
IEEE 802.3af Power over Ethernet | ||||
Power Pin Assignment | 4/5(+), 7/8(-) | |||
PoE Budget | Up to 240-watt PoE budget | |||
Operating Temperature | -40°C to 80°C (-40°F to 176°F) | |||
Input Power | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
Power Consumption | 8W Max.(PoE in Use<240W) | |||
DIP Switch | ||||
4-digit DIP switch function | DIP | Function | Settings | |
SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled | |
SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled | |
8 Port 1000M 802.3at PoE Switch Din Rail Ordering Information
Model | Description |
ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
SFP Options | SFP option. Please select your SFP on our SFP Options Page |
SFP module is to be purchased separately. | |
Mounting Options | Default DIN-Rail Bracket installed |
Power Options | DIN-Rail Power Supply. Open Wire for Terminal Block. |
Power Supply is to be purchased separately. |
|
