| Categories | Outdoor LED Street Lights |
|---|---|
| Brand Name: | Die-casting Man |
| Model Number: | YASL-21 |
| Certification: | CE, RoHs, ENEC, CB |
| Place of Origin: | CHINA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C |
| Supply Ability: | 30000pcs/month |
| Delivery Time: | 7-10 days based on order QTY |
| Packaging Details: | 1pc/bag/foam/carton, pallet optional |
| Power: | 60W |
| Material: | Die Casting Aluminium |
| Color: | Customized |
| Luminous Flux: | 7800-8400lm |
| LED Lifetime: | 50000h |
| Protectin Grade: | IP66 |
| Input voltage: | AC90-305V |
| Power Factor: | PF≥0.95 |
| Ik: | 08 |
| color rendering index: | Ra≥70 |
| Net Weight: | 3.3kgs |
| Gross Weight: | 3.8kgs |
| Packing Size（m m）: | 564*165*125 |
| Company Info. |
| NingBo Die-Casting Man Technology Co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
LED Street Light YASL-21

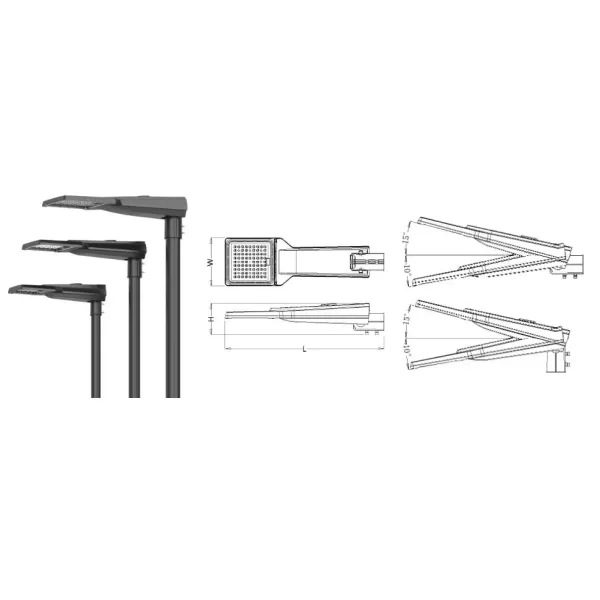

lnstalling Ways:
Both Horizontal and Vertical available and adjustable
angle-10°to+15°
This series is a high-performance street lighting available in
three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
Product Specification
| Product Code | YASL-21-40 | YASL-21-80 | YASL-21-150 | ||||||||
| Input Wattage | 20W 30W 50W 60W | 80W 100W 120W | 150W 180W 200W 240W | ||||||||
| Color Temperature | 2700K 3000K 4000K 5000K 5700K 6500K | ||||||||||
| Luminous Flux | 7800-8400lm | 13000-15000lm | 26000-28000lm | ||||||||
| Input Voltage | AC90~305V | AC90~305V | AC90~305V | ||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | ||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | ||||||||
| Temperature of Working Condition | -40~50ºC | -40~50ºC | -40~50ºC | ||||||||
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH | ||||||||
| LED Lifetime | 50000h | 50000h | 50000h | ||||||||
| Protectin Grade | IP66 | IP66 | IP66 | ||||||||
| Protection level | IK08 IK09 IK10 | ||||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | ||||||||
| Installation Height | 4-8m | 6-12m | 10-14m | ||||||||
| Net Weight | 3.3kgs | 6.2kgs | 7.6kgs | ||||||||
| Gross Weight | 3.8kgs | 6.9kgs | 8.0kgs | ||||||||
| Packing Size(m m) | 660*230*170 | 770*280*180 | 890*320*190 | ||||||||
Photometric Data
Our company exhibition
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before
shipment.
Warranty: 5 years warranty
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service
A: Yes. we are.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: Do you supply empty house only without LED and driver.
A: Yes, we are.
|
