Home > Packaging Forming Machines >

Pneumatic Automatic Rigid Box Making Machine For Paper Box 2.5kw

Categories Rigid Box Making Machine
Place of Origin: Guangdong, China
Brand Name: Longxingsheng
Certification: CE ISO
Packaging Details: with film, paper and wooden crates
Supply Ability: 30 Set/Sets per Month
Price: $18,000.00 - $26,000.00/sets
Type: Boxing Machine
Applicable Industries: packaging machinery
Showroom Location: Turkey, Italy, Viet Nam, Mexico, Spain, South Korea
Condition: New
Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type: case
Packaging Material: Wood
Automatic Grade: Semi-automatic

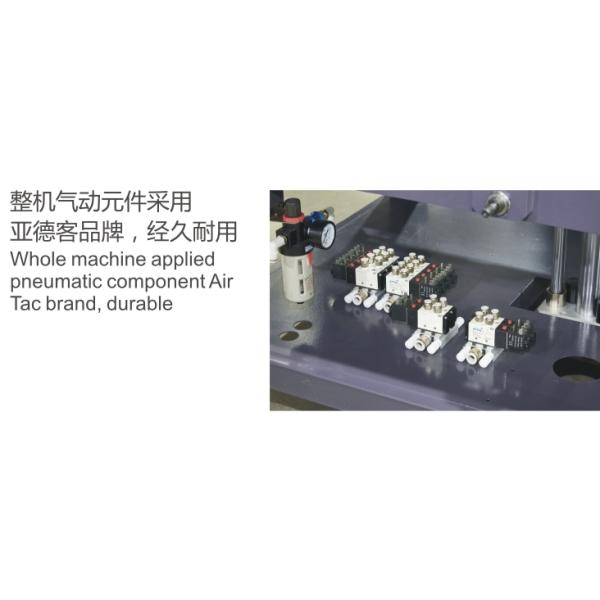

Driven Type: Pneumatic
Voltage: 220V
Dimension(L*W*H): 1220*960*2100mm
Weight: 980kgs
Warranty: 3 years
Key Selling Points: Easy to Operate
Model Name: LS-F6
Name: automatic rigid box making machine for paper box
max box size: 460*380*120mm
min box size: 80*65*10mm
air supply: 0.6Mpa
working speed: ≤22 pcs/min
power supply: 2.5kw/220v
machine dimension: 1220*960*2100mm
machine weight: 980kg
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Turkey, India, Mexico, Spain, South Korea
After-sales Service Provided: Free spare parts, Video technical support, Online support
Port: Shenzhen; Guangzhou
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pneumatic Automatic Rigid Box Making Machine For Paper Box 2.5kw

LS-F6
About LS-F6
LS-F6 Rigid box making machine is applied for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding (≤50 mm), tucking in and air pressing at one time. It has applied Penumatic and Compressor air to driving the machine running.
This machine is setting by manual, whcih will cost around 15 minutes. It is an ideal equipment for customer which has different
quantity orders. Especially the customer seeking for higher quality products.
It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7 S. The max speed of this machine can reach 30 pcs/min to certain boxes.
Required mold when change size

Plastic mold
Durable and expensive

Wooden mold
Easy made and cheaper

Slant side box mold configurations

Customization
Working process

1. Box positioning on glued paper

2. Long side wrapping

3. Edge folding

4. Short side wrapping

5. Tucking in

6. Air pressing
Box range of LS-F6

Normal rigid box

Tucking into bottom

Max wrapping height is 65mm

65-80mm wrapping height require modified

Slant sides boxes

Require modified mold, tucking in blade and air pressing board. Shortest height side require ≥ 10mm

Long edge folding
Require modification when the edge length at 50-100mm.
Max edge folding length is 100mm

Small box
Require customization
Min box size is 50*50*15mm

Opposite edge folding

Require customization
Book-type box require this type folding way
Gift box solutions
Customer Photos
Certification
Expo with customers
Packaging&Delivery
