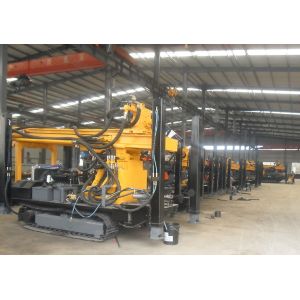

350m Tractor Mounted Drilling Rig Geothermal Rotary Machine

350m Geothermal Hydraulic Crawler Drill Rotary Machine Tractor Mounted Drilling Rig

Technical Parameters of ST300 water well drilling rig
type	ST350
The weight	9.8T
Dimension	6m×2m×2.5m
The hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Crawler Mounted Drill Rig advantage

1. Power system, equipment that provides energy for the whole set of drilling rig;

2. Working system, equipment for working according to process requirements;

3. Transmission system, equipment for transmitting, conveying and distributing energy for the working unit;

4. Control system, control all systems and equipment, and coordinate and accurately work according to the process requirements;

5. Auxiliary system, equipment to assist the main system. Sealing lubrication of flat valve of water well drilling rig accessories lithium base grease shall be used for thrust bearing of flat valve of manual water well drilling rig accessories. The consumption of grease shall be checked after each maintenance. If deterioration, pollution or lack are found, it shall be replaced or supplemented immediately.

Drilling rig components

Engine: turbocharged engine of Guangxi Yuchai, a well-known brand;

Walking device: equipped with new walking motor and reducer, with long service life;

Hydraulic oil pump: imported from the United States, the parallel gearbox is designed to separate the oil pump, providing sufficient and reasonable power distribution. The unique design of the advanced hydraulic system, simple maintenance and low cost;

Power head device; The gearbox body is made of one body, the twin motors provide more power, more torque, more durable, less maintenance cost;

Drilling rig chassis; Professional excavator chassis, classic durable, large weight bearing, wide chain plate width, small damage to hard pavement;

Lifting power; Adopt the designed composite big arm, the big arm is small in volume, long in travel, double oil cylinder lifting force, large tonnage of drilling rig lifting;

The lifting arm configured with the body of the drill is equipped with a limited bit device, which is used to protect the safety of the oil cylinder and ensure the safety at work;

Each hydraulic oil pipe is covered with a thick protective jacket, making the oil pipe have a longer service life;

Jinzhou City Shitan Machinery Equipment CO. LTD.  is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern productiona

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Mechinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
