EMC Panel Mount Rubber Rugged Military Keyboard With Backlight

Categories Military Keyboard
Brand Name: IKB-MKB
Model Number: K-TEK-M276HP-FN-BL-ML-EMC-SS
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin: Shenzhen, China
MOQ: 1pc
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Supply Ability: 3000psc/month
Material: Silicone Rubber
Interface: USB/PS2
Colour: Black
Backlit: Red
Working Temperature: -40-+80C
Mounting: Panel Mount
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

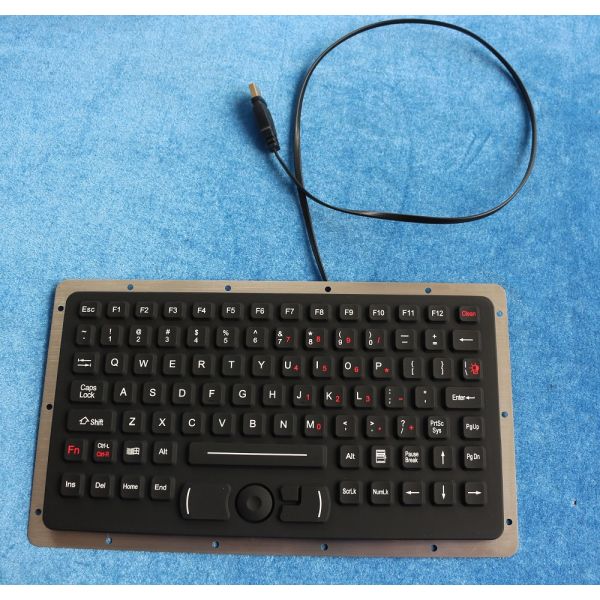

EMC Panel Mount Rubber Rugged Military Keyboard With Backlight

Rugged Military Keyboard with Backlight EMC Panel Mount Rubber with FSR

MAIN FEATURES:
-91 keys IP67 dynamic sealed and ruggedized silicone rubber military keyboard
-Full keyboard with a Force Sensing Resistor pointing device for fast and accurate cursor position.

-12 FN keys (F1, F2...F11, F12) are on top line for easy operation.
-With military PCB with carbon-on-gold key switch technology
-With long stroke (1.50mm),which has a good tactile feeling for fast and accurate data input without any noise.
-With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment.
-FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC,
-With backlight included(red/blue/white/green optional).
-EMC approval ensures that this model can coexist with other sensitiveequipment without causing interference.
-Panel mounting solution with stainless steel on the back of the keyboard. Military level.
APPLICATIONS:
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, warehouses
MECHANICAL DATA :
Keys:91 Keys
Key top style:Protuberant rectangular keys with tactile feeling.
Lifetime>10 million strokes
Output :PS/2 or USB
Key Size:12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.
Cable Length:Standard 2.0m, customized length available.
G.W.:1.80KGs
Dimensions:302.0mm x 173.6mm (L x W)

ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-35℃ to +70℃
Storage temperature:-40℃ to +75℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃:21 days, IEC 60512-6
Dry heat test at +85℃:10 days, IEC 60512-6
Operating RH:100%
Atmospheric pressure:60-106Kpa
Shock:3x11 ms pulses of 50g on each of 3 axes
Vibration:POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
PRINTED CIRCUIT BOARD:94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB

RELIABILITY :
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA (non-backlight) , 300mA (with backlight on)
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)



FAQ
www.rugged-key.com
www.key-tek.cn
www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
