Construction Site Portable Office Buildings Energy Saving Environment Friendly

Portable Prefab Construction Site Office Prefabricated Container House

I. Introduction

Prefab container house is a new type of steel structure, which is faster, more convenient, and more environmentally friendly than traditional houses. Container house can be called a fast-assembling container house, its biggest advantage is convenience.

Using a container house as a construction site office is also very environmental protection and energy-saving. It won't produce any operation waste and its service life is as long as 15 years.

II. Design description

This prefab office prefabricated container house is designed for construction sites. The office building is with a double slope steel roof, making it could be placed where there is a lot of rain.

There is more than 20 offices room in this drawing, along with them include toilets, printing room, storage rooms, and conference rooms.

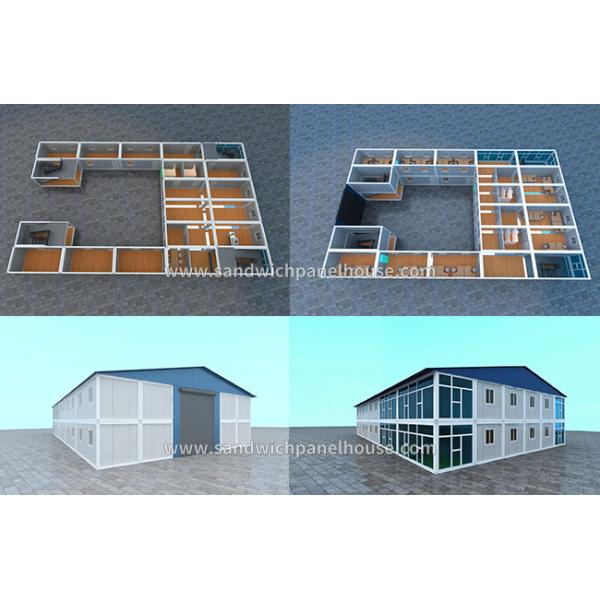

III. Layout description

1	Building area	1080 sqm
2	Land area	540 sqm
2	Office room qty.	10
3	Storage room qty.	2
4	Conference room qty.	1
5	Toilet room qty.	3

IV. Project show

V. Main material specification

Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
I	Roof Plate	Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated;
		Strong and corrosion resistance.
ii	Roof Purlin	1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
		Firm, strong corrosion resistance and has a long service life.
iii	Roof Insulation	50 mm glass wool insulation material;
		Fireproof A1 class, non-combustion.
iv	Ceiling	The ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and color coated;
		Strong and corrosion resistance.
Part 2: Steel Frame (Corner post + column + beam + bolt)
I	Corner Connection Part	Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);
		Feather: Safe, strong and corrosion resistance.
		The color is glossy and can last for a long time.
ii	Column	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 2480mm;
		Feather: Safe, strong and corrosion resistance.
		The color is glossy and can last for a long time.
iii	Top and Floor Long Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 3680* 60* 160 mm;
		Size 2: 5680* 60* 160 mm;
		Feather: Safe, strong and corrosion resistance. The color is glossy and can last for a long time.
iv	Top & Floor Short Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 2680* 60* 160 mm;
		Feather: Safe, strong and corrosion resistance.
		The color is glossy and can last for a long time.
v	Bolt	High strength galvanized steel bolt;
		To fix the Corner Connection Part and beam, Corner Connection Part and column;
		Firm, strong and corrosion resistance.

VI. Program show
