Handheld OTDR Fiber Optic Light Source Tester VFL AOR500 TriBrer Palm Brands

Categories Fiber Optic Tool Kit
Brand Name: wangtong
Model Number: AOR500
Certification: RoHS CE FCC IOS9001
Place of Origin: China
MOQ: 1 pc
Price: negotiable
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 1000 Pack/Packs per Week
Delivery Time: 5-7 working days
Packaging Details: bags&caron box
Product name: OTDR Tester
Warranty: 3 Years
Ports: USB
Wavelength: Jdsu Mts-6000
Type: Sm Mm Otdr
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

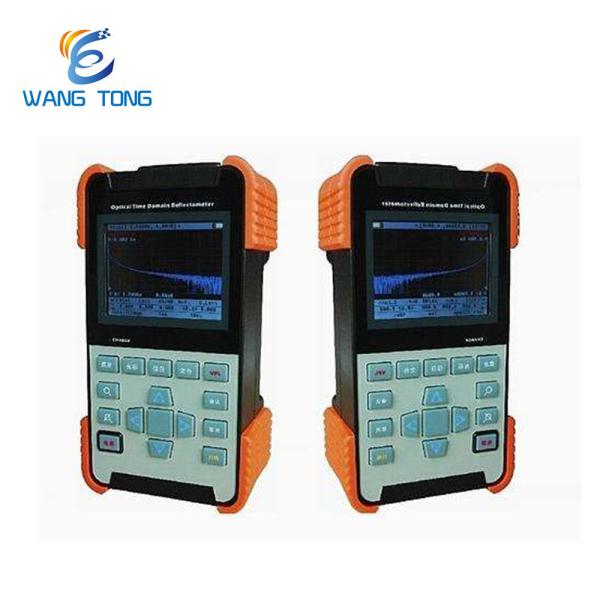

Handheld OTDR Fiber Optic Light Source Tester VFL AOR500 TriBrer Palm Brands

Fiber Optic Testing Tools OTDR Tester VFL AOR500 TriBrer Palm Brands Handheld


Feature&Description


Convenient one-button testing

l High speed signal processing, less test time and fast analysis

l Color TFT LCD

l USB port connect to PC

l Input optical signal auto detection and self-protection

l Built-in VFL


Parameter


AOR500-SAOR500-AAOR500-B
Wavelength1310±20nm / 1550±20nm
Dynamic Range *24/22dB28dB / 26dB32dB / 30dB
Event Dead Zone **< 1.5m
Attenuation Dead Zone< 8.0m
Pulse Width10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1000ns,2500ns,5000ns, 10000ns
Distance uncertainty±(1.0m ± 0.005% * testing distance ± resolution)
Linearity±0.05dB/ dB
Loss Resolution0.001dB
Distance Resolution1m
ConnectorFC (optional: SC, ST, LC)
VFL1mW
Data Storage> 10000 traces (standard 1GB SD card)
Display3.5 inch TFT color LCD
InterfaceUSB
BatteryBuilt-in rechargeable battery
Working Time>10 hrs (Bellcore TR-NWT-001138)
Operating Temp.-10 -- +50 ℃, < 90%RH
Storage Temp.-20 -- +60 ℃, < 90%RH
Net Weight0.9 Kg
Dimension230mm×120mm×60mm

Accessories

AC/DC adapter1
Operation guide1
Carrying bag1
USB cable1
Calibration certificate1
SC interchangeable connectoroptional
ST interchangeable connectoroptional
LC interchangeable connectoroptional

Application


  • Typical Solution:FTTH .

  • Typical business : Cable testing
