| Categories | Fiber Optic Splitter |
|---|---|
| Brand Name: | wangtong |
| Model Number: | LGX Cassette type plc splitter |
| Certification: | ISO9001:2008,ROHS |
| Place of Origin: | Guangdong, China (Mainland) |
| MOQ: | 1 pc |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Pack/Packs per Day |
| Delivery Time: | 3 -10 working day(s) after payment received |
| Packaging Details: | pvc bag or blister box+carton |
| Product name: | LGX Cassette type plc splitter |
| Application: | FTTH FTTB FTTX Network |
| Configuration: | 1x2 |
| Connector: | sc/upc, sc/apc, LC/FC/ST |
| Package Type: | LGX Cassette |
| Fiber length: | 1M, 1.5M or customized design |
FTTH Gpon LGX Cassette type PLC Splitter fiber optic splitter 1x2
Description
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Feature
Application
Optical Fiber Communication
CATV
Optical Transmission Backbone
Optical Fiber Test and Measurement Systems
Parameter
| Product Model | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Wavelength | 1260-1650nm | ||||||||||
| Insertion loss(db) | 3.6 | 7.2 | 10.2 | 13.5 | 16.2 | 20.5 | 3.8 | 7.5 | 10.7 | 14 | 17 |
| Uniformity(db) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 0.6 | 1 | 1.2 | 1.5 | 1.8 |
| PDL(db) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Directivity(db) | 55 | ||||||||||
| Reflection loss(db) | 55 | ||||||||||
| Operating temperature | -40~85℃ | ||||||||||

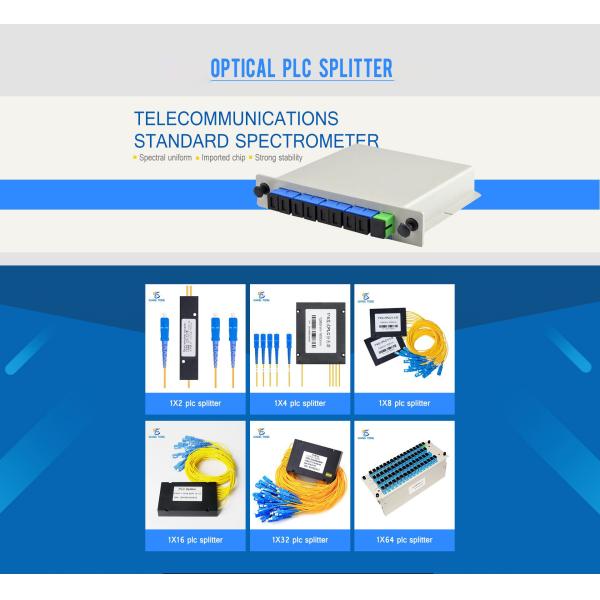

Product Pictures
|
