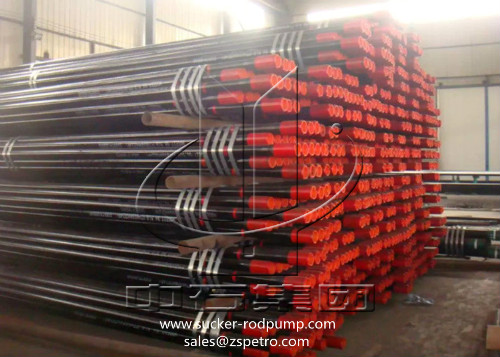

OCTG Oilfield Tubing Pipe With R2 Length And API Threads BTC LTC STC
Oil tubing description:
The function of oil tubing is transporting oil and gas to ground surface. It can bear the pressure in the oil
and gas production
Features:
1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”
Technical specification:
| Specification | Weight code | Outside diameter (mm) | Wall thickness (mm) | Inner diameter (mm) | Calculated weight | ||||
| NUE(with thread and coupling) | EUE(with thread and coupling) | Plain end (kg/m) | Changed weight due to end process(kg) | ||||||
| Plain(with thread and coupling) | External upset threaded and coupled | ||||||||
| standard coupling | special coupling | ||||||||
| 1.9 | 2.75 | 2.9 | 48.26 | 3.68 | 40.9 | 4.05 | 0.27 | 0.91 | - |
| 2-3/8 | 4.6 | 4.7 | 60.32 | 4.83 | 50.66 | 6.61 | 0.73 | 1.81 | 1.34 |
| 2-7/8 | 6.4 | 6.5 | 73.02 | 5.51 | 62 | 9.17 | 1.45 | 2.54 | 1.71 |
| 2-7/8 | 8.6 | 8.7 | 73.02 | 7.82 | 57.38 | 12.57 | 1.18 | 2.27 | 1.43 |
| 3-1/2 | 9.2 | 9.3 | 88.9 | 6.45 | 76 | 13.12 | 2.27 | 4.17 | 2.45 |
| 3-1/2 | 12.7 | 12.95 | 88.9 | 9.52 | 69.86 | 18.64 | 1.81 | 3.72 | 2 |
| 4 | 10.7 | 11 | 101.6 | 6.65 | 88.3 | 15.57 | - | 4.81 | - |
| 4-1/2 | 12.6 | 12.75 | 114.3 | 6.88 | 100.54 | 18.23 | 2.72 | - | - |
Mechanical properties:
| Grade | Yield Strength | Tensile Strenght | Hardness | Allowable | |||||
| Min | Max | Min | Max | Max | Hardness | ||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | HRC | BHN | Variation | |
| J55 | 55,000 | 379 | 80,000 | 552 | 75,000 | 517 | - | - | - |
| K55 | 55,000 | 379 | 88,000 | 552 | 95,000 | 655 | - | - | - |
| N80 | 80,000 | 552 | 110,000 | 758 | 100,000 | 689 | - | - | - |
| N80-1 | 80,000 | 552 | 95,000 | 655 | 95,000 | 655 | 23 | 241 | - |
| C90 | 90,000 | 621 | 105,000 | 724 | 100,000 | 689 | 25.4 | 255 | 3 |
| C95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | - | - | - |
| T95 | 95,000 | 655 | 110,000 | 758 | 105,000 | 724 | 25.4 | 255 | 3 |
| P110 | 110,000 | 758 | 140,000 | 965 | 125,000 | 862 | - | - | - |
|
