| Categories | Mining Dump Truck |
|---|---|
| Brand Name: | dongfeng |
| Model Number: | DFD3060 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1unit |
| Price: | USD22000-USD24500 |
| Supply Ability: | 500untis / month |
| Delivery Time: | 30 Days |
| Packaging Details: | Nude |
| Name: | 6 wheel dump truck |
| Engine: | Yuchai, Cummins |
| Payload: | 10T |
| Color: | Yellow, white |
| Drive Mode: | 4x4 |

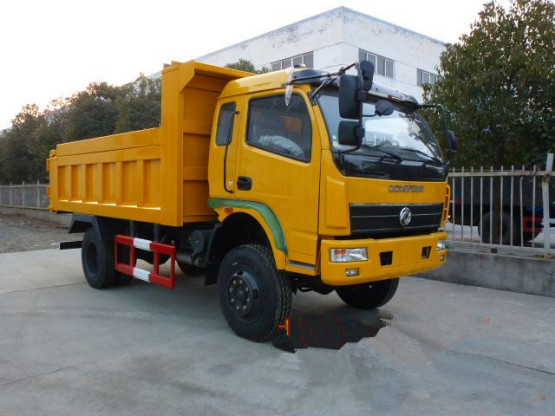

Dongfeng minning dump truck LHD and RHD , Drive mode 4X4
Specicifaitons:
| Packaging: | Nude Loaded | |||
| Mini. Order quantity | 1unit | |||
| Supply Ability: | 500sets/sets per month | |||
| Detailed Paramaters | Truck | Dimension | Outer dimension Length*Width*Height(mm) | 6750x2475x2790 |
| Inner Dimension of cargo body(mm) | 4200x2280x800 | |||
| Wheel Base (mm) | 3600 | |||
| weight | Curb (kg) | 3360 | ||
| Rated Payload(kg) | 9000 | |||
| G.V.W (kg) | 12300 | |||
| Max. speed (km/h) | 85 | |||
| Engine | Type | Direct Injection,charge inter-cooling | ||
| Model | YC4E120-33 | |||
| Manufacturer | Yuchai | |||
| Displacement (ml) | 4260 | |||
| Fuel | Diesel | |||
| Max. Power | 105 | |||
| Emission Level | China Standard III (similar to Euro III) | |||
| Cab | Model | B07 one and a half row (width of the cab:2025mm)) | ||
| Type | Flat Head ,one and a half Row | |||
| Cab Allowed Capacity | 3 persons | |||
| Number of Seat | 3 | |||
| Air condition | N/A | |||
| Number of Door | 2 | |||
| Chassis | Model | N/A | ||
| Driving Mode | 4×4 | |||
| Number of axles | 2 | |||
| Rim/Tire Type | 8.25-20 | |||
| Number of Tires | 6 | |||
| Gearbox | Model | 5 shafts | ||
| Type | Manual | |||
| Forward Gear | 5 | |||
| Steering | Steering Mode | Power steering | ||
| Front Axle | Model | 2.8T | ||
| Rear Axle | Model | 8T | ||
| Frame | 250mm(7+5) | |||
| Apprach angle/departure angle 24/20 | ||||
| Leaf spring | 8/11+8 | |||
| Other | air brake,power steering | |||
|
