108 Keys IP68 dynamic rated washable industrial membrane keyboard USB Desktop

108 Keys IP68 dynamic rated washable industrial membrane keyboard USB Desktop

DESCRIPTION: 108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 16.0mm MINI optical trackball module with 800 DPI resolutions for fast and accurate position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm Aluminum plate with sand blasting & oxygenation treatment, mountable movable desk top version with robust polycarbonate case.

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.

A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty
manufacturing environments, warehouses etc
E: OTHER INDUSTRIES

MAIN FEATURES:

• Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
• The foil-covered aluminum front plate is mounted flush for easy cleaning.
• The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
• PS/2, USB connection cables that plug directly into computer like keyboard operations.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
• Clean key -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.

MECHANICAL DATA:

TRACKBALL:

• 25mm stainless steel ball or hardened resin ball.
• Resolution: 800DPI
• Lifetime: more than 10 million cycle
• Power supply voltage: 5 V DC ±0.25V
• Current rating (active mode): 100mA

ELECTRICAL DATA:

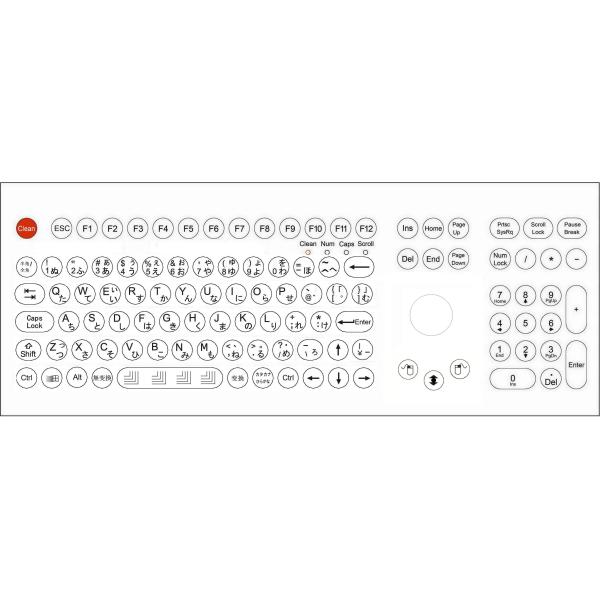

Keyboard layout:

Actual Photos:

About Us:

Key Technology was established in 2006, which is a company specializing in providing vandal proof waterproof IP65/IP66/IP67/IP68 industrial/medical/marine/vehicle/rugged computer keyboard/keypad/trackball/touchpad Etc.

Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and team spirit is a special attribute of the people in Key Technology China Limited. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

Durable Design:
-Ideal for applications in the harshest conditions.

-Our products meet NEMA 4, 4X and IP 65 and IP68 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

--Designs that exceed requirements for ISO certification to ensure quality control among manufacturing standards.

-Indestructible Industrial Keyboards and Pointing Devices are long lasting and stand up in harsh environments where your typical office grade peripherals will not survive.

-An ability to withstand extreme temperatures that permits function in freezers, heat-sensitive areas, and other severe environments.

-All the input devices are plug-and-play compatible with Windows operating systems, MAC OS9/OSX and require no special drivers.

--Any language layouts are available to accommodate international customers.
-Customizable function keys that provide flexibility for specialized applications.

-Low-profile keys that allow for efficient cleaning, reduced disinfection time and protection against cross contamination.
-Backlit keys that allow employees to optimize performance while working in low-light environments.
-Polycarbonate and stainless steel cases available to meet custom preferences.
-Small footprint designs that increase mobility.

-Standard mounting patterns that fit most keyboard mounts for easy integration into existing systems.
-More specialized features that cater to our kiosk/ATM, medical, military, emergency response, industrial and material-handling end users.
