vending machine bill acceptor/card dispenser machine/card reader module

Categories Card Issuing Machine
Brand Name: OEM/Customize
Model Number: PT-F5-5/6
Certification: CE/ROHS
Place of Origin: China
MOQ: 1 units, sample available
Price: by inquiry
Payment Terms: T/T, Western Union,paypal
Supply Ability: 1000+ units / month
Delivery Time: 3-4 weeks for lots
Packaging Details: 2 units /carton
Name: vending machine bill acceptor/card dispenser machine/card reader module
Material: Metal & Engineering Plastic Frame
Support Card: Magnetic&Chip&RFID Card dispensing and Collecting
Interface: RS232
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

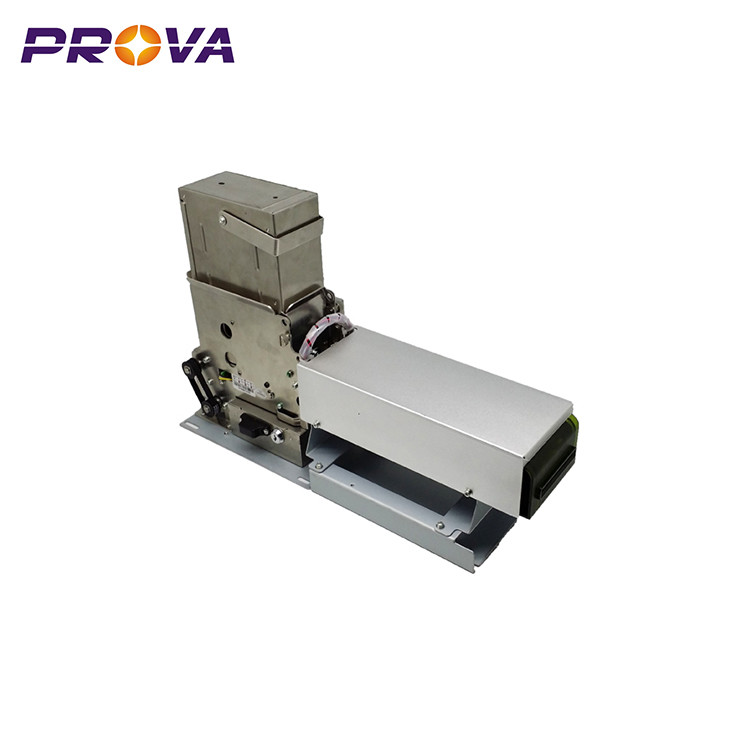

    vending machine bill acceptor/card dispenser machine/card reader module

    Product : vending machine bill acceptor/card dispenser machine/card reader module

    Model: PT-F5-2 (Single Channel)

    PT-F5-5 (Two Channel)

    PT-F5-6 (Three Channel)


    Product Features:

    PT-F5 series Multi Channel (Card boxes) card issuing machine, mainly used in finance, communications, and medical industry self-service open-card, sales card etc.The product mainly adopt the hook card issuers, with convex word card can realize accurate issue card; card machine comes with a safety lock, with the installation of electric reader, read and write operations on the card.


    Despriction:

    ● The use of reverse hook type card hook card, can accurately issue a variety of IC card and bank (Convex) card.

    ● Three card box design, to achieve a multi-purpose machine.

    ● With safety lock card box, and recovery box Design, improve the safety of the card management.

    ● Issue card box can be independently removed and with a separate lock.

    ● Recycling box can be independently removed and with a separate lock.

    ● Can cooperate with high-end electric reader,read and write operations on the card.

    ● Multiple sets of sensors can check Storage box pre - empty, storage box-empty, storage position. and recycling box multiple sets of sensors.

    ● Can accurately determine the location of the card and the card status prompt function.


    Technical Parameter:


    ItemsParameter
    Support card
    (optional)

    Magcard standard,physical propert,Conformity Card size: ISO78101D-1 type Magcard standard

    Embossed convex card: IC standard: ISO7816 standard, surport AT24C01,24C02,24C256,SLE4442,SLE4428,CPU T=0/T=1

    Card Size

    L: 53.92-54.18mm

    H:RS-232 semiduplex

    Work Volage200mA
    Quantity of storage tank3 piece
    Storage tank loading(unit)≥100
    Recycling tank capacity30pcs
    Working life(magnetic) head ≥50million times
    Magnetic stripes card repeat rate<span "="" style="padding: 0px; margin: 0px; color: rgb(69, 69, 69);">≤1/1000
    Work EnvironmentTemperature / humidity 0℃--50℃/0-90%(No condensation)
    Storage EnvironmentTemperature / humidity -10℃—60℃/0—90%(No condensation)

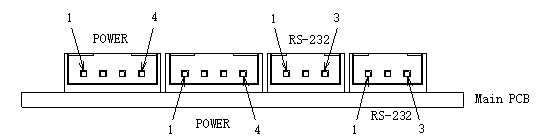

    RS-232 interface:
